Name: ACT 3-12 New (5,800 CFM) Cartridge Dust Collector
SKU: JD-1456
Price: 25081.00 USD
Availability: OutOfStock

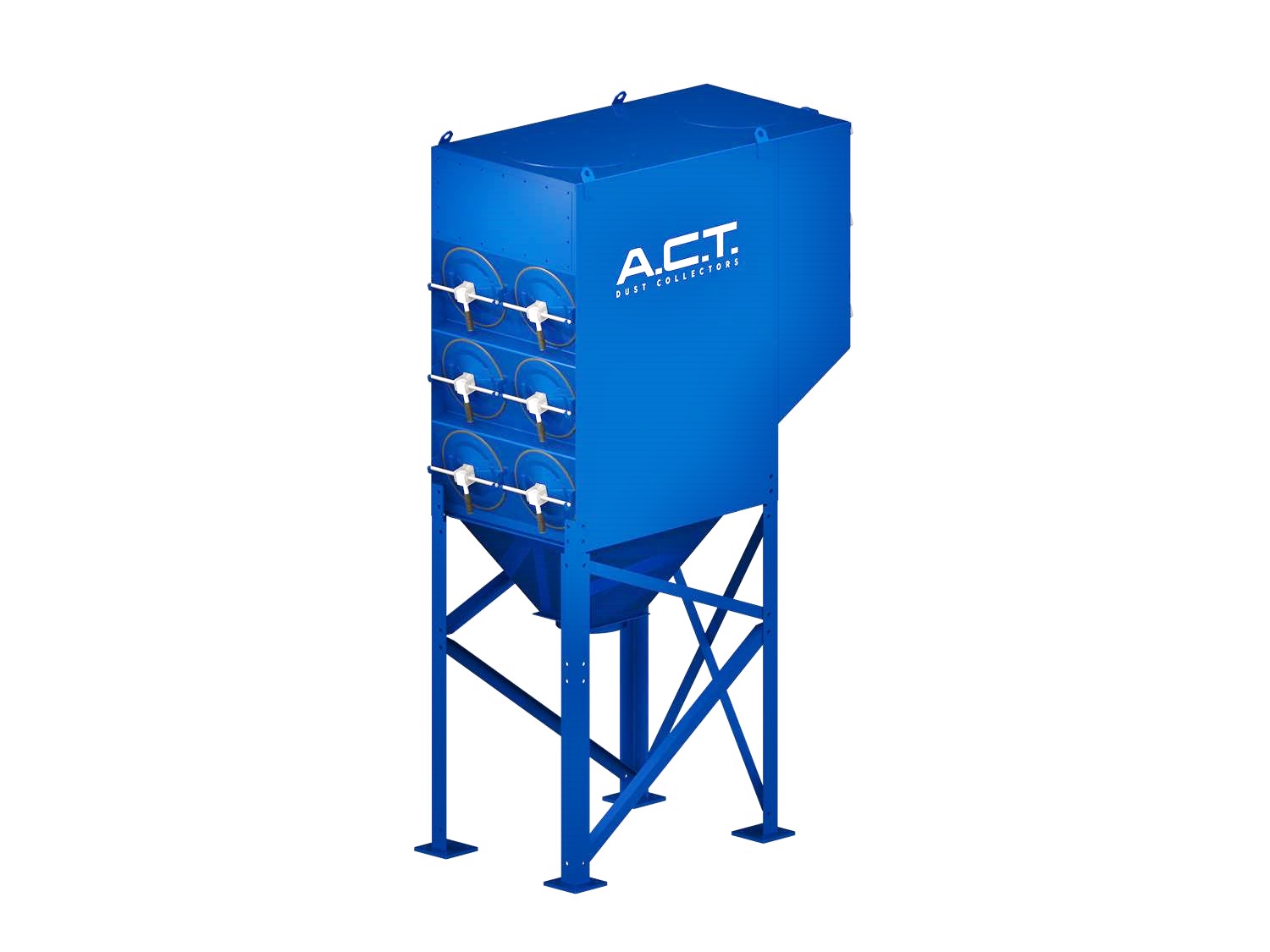

ACT 3-12 New (5,800 CFM) Cartridge Dust Collector

5,800 CFM
Brand New with 5 year manufacturers warranty
208-230/460v 60 cy, 3ph
Made in Minnesota
Air Cleaning Technology, Inc. is proud to offer the very best in dust collection. The ACT line of downward flow dust collectors is the answer to all of your air quality issues. From welding smoke, to grinding, cutting tables to blast applications, sanding to thermal spray, coating and bulk powders or any process that generates dust, we have the dust collector for you. Our dust collectors have capabilities from 1,000 CFM to 100,000 CFM and up.

Share Via Email or Social Media:

Description

ACT 3-12 New Cartridge Dust Collector

5,800 CFM @ 10″ S.P. Cartridge Filter System with 12 cartridges.
254 sq. ft. of media each for a total of 3,048 sq. ft. of filter area. 1.90:1 air to media ratio.
Filters are 99.9% efficient.
Automatic reverse jet cleaning via compressed air,
Dwyer pulse control timer board with photohelic pressure gauge.
55 Gallon Leg Pack & Drum Lid
15HP motor with Direct Drive Twin Cities Fan, top mounted.
Silencer for TCB1 15 Damper for TCBI 15 Opposed Blade Magnetic starter not included.
See optional all-in-one timer board/pressure gauge/motor starter/disconnect option.
Options Available – Call for Quote;
- Silencer
- Backdraft Damper
- Abrasive Inlet Plenum
- Hepa After-Filter
- Slide Gate
- Sprinkler
- Coupler
- In-Line Spark Trap
- Solenoid Heater Kit
- Rotary Air Lock Adaptor
- Rotary Air Lock
- Explosion Vents
