AirWall New 80MD (8,000 CFM) Dust Collection Ventilation System (ECB Module)

Call for Quote - (231) 894-0333

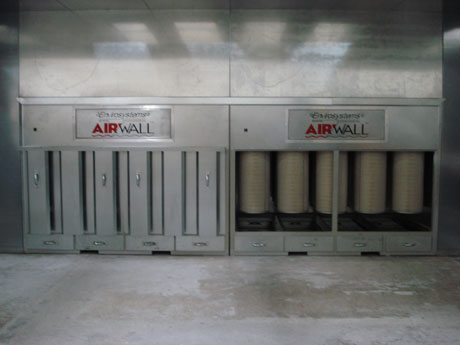

The AirWall® is a self contained cartridge filter unit with a small footprint that does not require ductwork and operates with lower horsepower fans than traditional models. The AirWall® unit automatically cleans the cartridge filters utilizing compressed air. It comes in various standard sizes or can be built to your specifications.

SKU: JD-1443 Categories: , , , Tags: , , , Print
Share Via Email or Social Media:

Description

AirWall New 80MD Dust Collection Ventilation System (ECB Module)

Specifications:

  • 8,000 CFM @ 2.2:1 Air-To-Cloth Ratio from (15) Cellulose Cartridge Filters
  • Total Media 3,600 Sq.Ft.
  • Automatic Reverse Pulse Filter Cleaning System from shop compressed air
  • Structural Steel Frame with 18 Ga. Galvanized Sheet Metal Skin
  • 7.5Hp TEFC UL/CSA Approved Motor/Blower unit
  •  80″ Width, 48″ Depth, 60″ Height  2,080 Lbs.
  • Starter, Dwyer® Pulse Timer & Gage included
  • Removes 99.9% of Airborne Contaminants
