Carbo-Tech 10-10-10-1649 (8,200 CFM) Pulse Jet Used Dust Collector

Call for Quote - (231) 894-0333

  • Used Dust Collection System
  • Carbo-Tech 10-10-10-1649
  • 8,200 CFM @ approx. 5:1 Air-To-Cloth Ratio from approx. (100) 10′ Long Filter Bags
  • 1,649 Sq. Ft of filter area.
  • This Carbo-Tech Pulse Jet Baghouse Dust Collector is ideal for the Mid-Size Woodworking Facility
  • The Air-To-Cloth ratio could be increased to 7:1 for Fine Dust or as high as 9:1 for Mixed Dust.
  • Changes to the fan could take this unit as high as 14,800 CFM!
SKU: JD-1471 Categories: , , , , , , Tags: , , , , Print
Share Via Email or Social Media:

Description

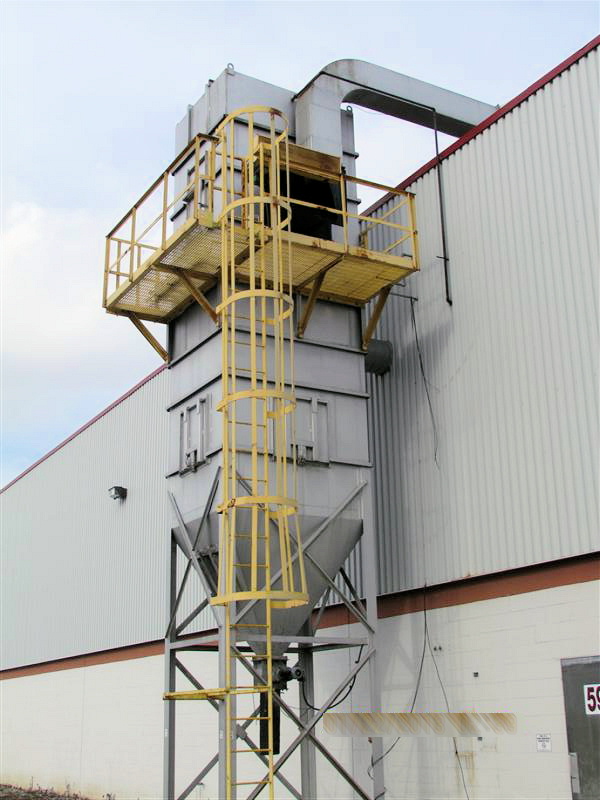

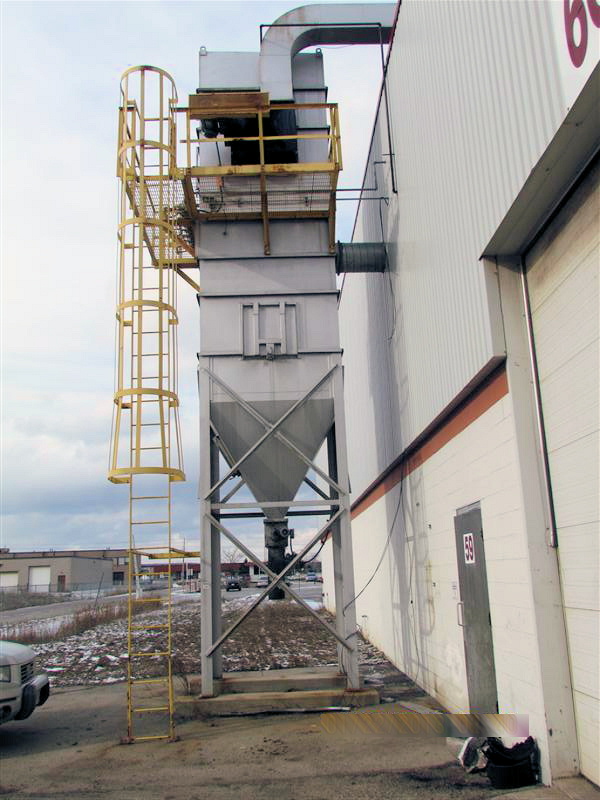

Carbo-Tech 10-10-10-1649 Used Baghouse Dust Collector

  • 8,200 CFM @ approx. 5:1 Air-To-Cloth Ratio from approx. (100) 10′ Long Filter Bags
  • 1,649 Sq. Ft of filter area.
  • Reverse Pulse Filter Cleaning System from Shop Air

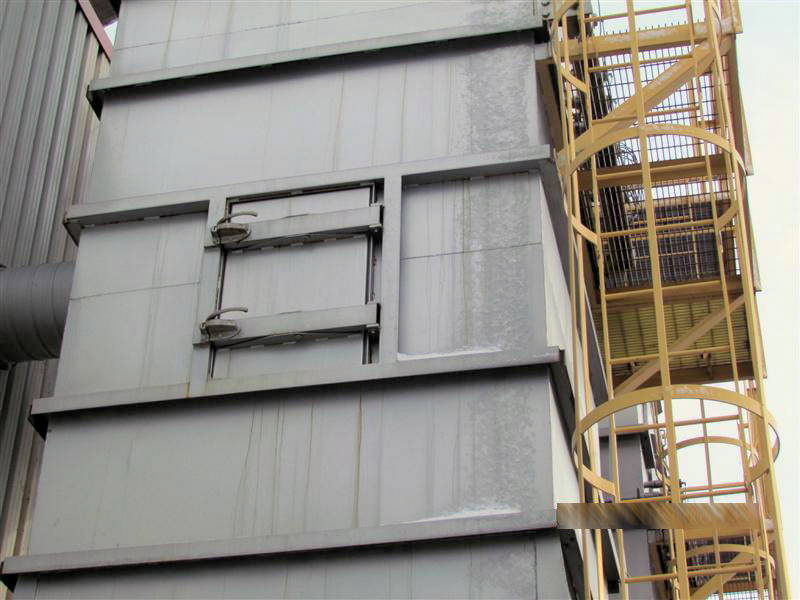

  • Side Access Walk-In Plenum for bag removal
  • Constructed of Heavy Gauge Steel with Bottom Entry Inlet
  • Top Side Clean Air Outlet
  • Sloped Hopper with inspection door. (Not for Storage)
  • Explosion Vents

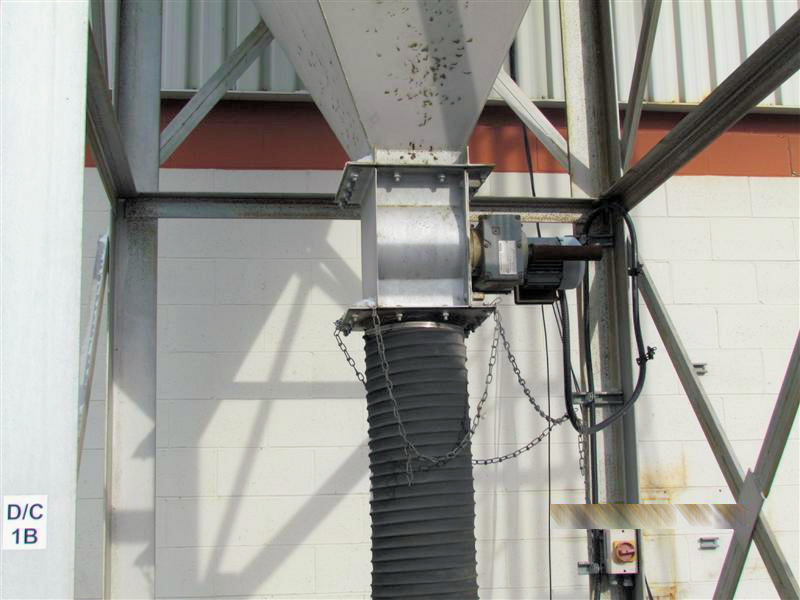

  • Rotary Air Lock Discharge

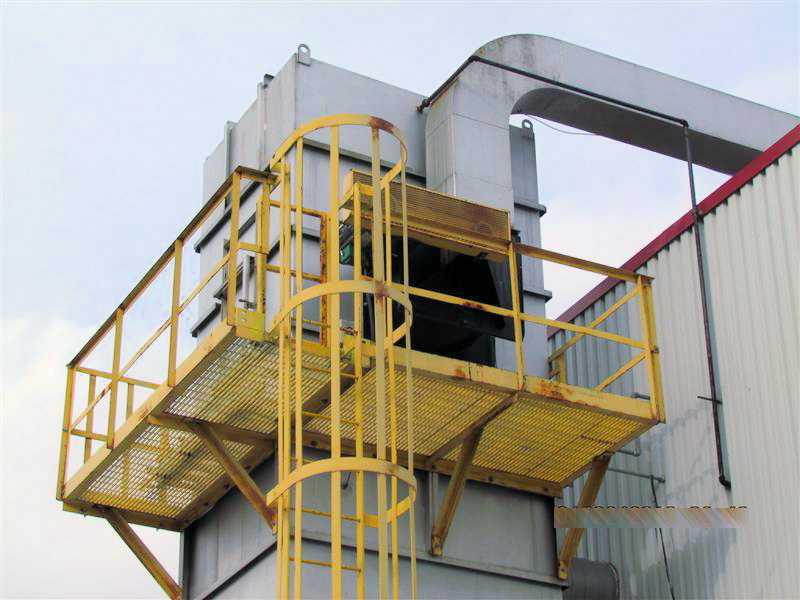

  • Structural Steel Supports with Safety Ladder and Service Catwalk
  • 25 HP Side Mounted Blower/Motor capable of 8,200 CFM

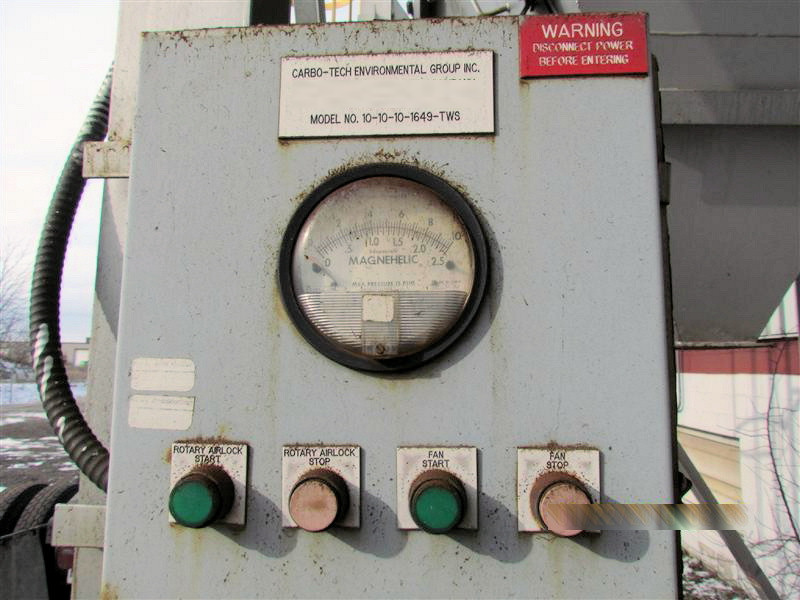

  • Control Panel with Magnehelic Gage Currently wired 575V/60CY/3PH
  • Professional Dismantling and Truck Loading Available
  • Approx. Dimensions: 7’W X 7 1/2′ D X 30′ H
  • 7500 LBS
