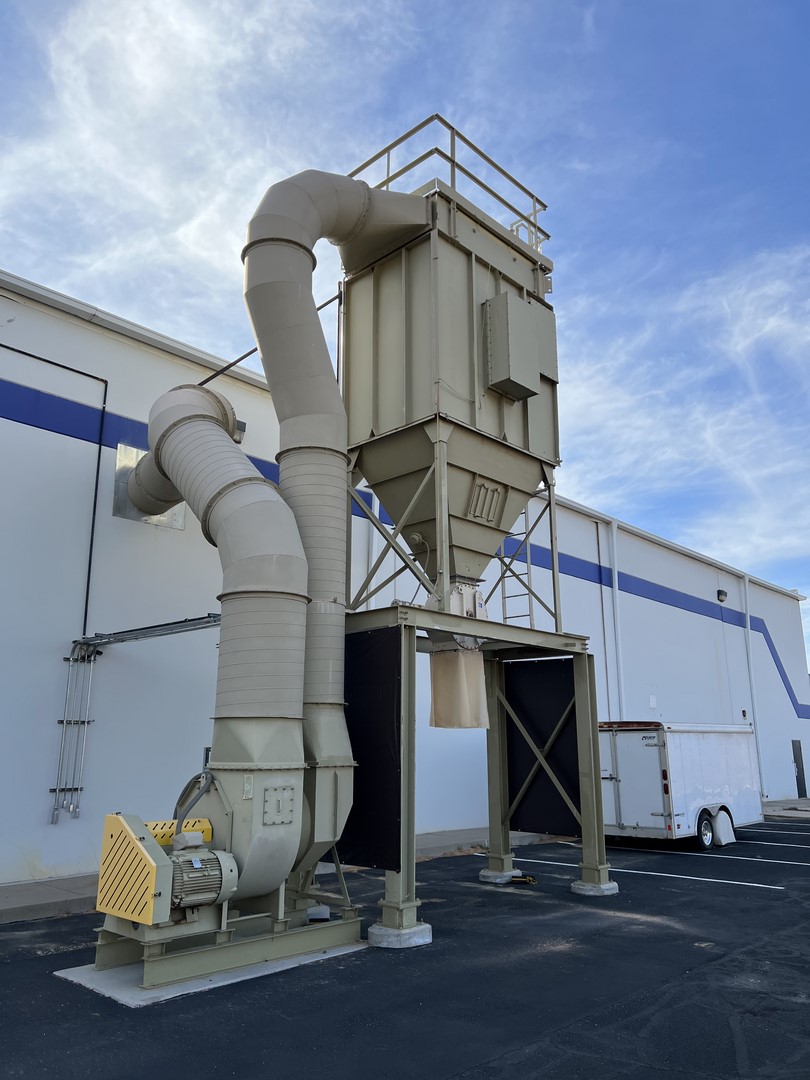

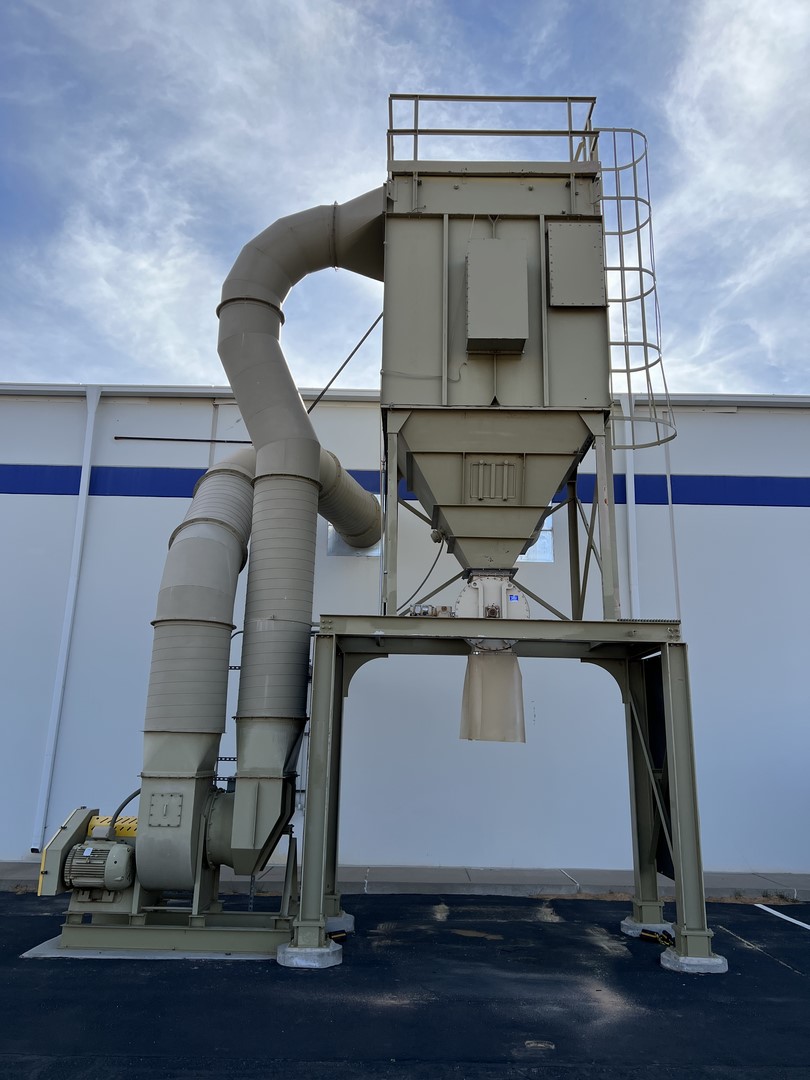

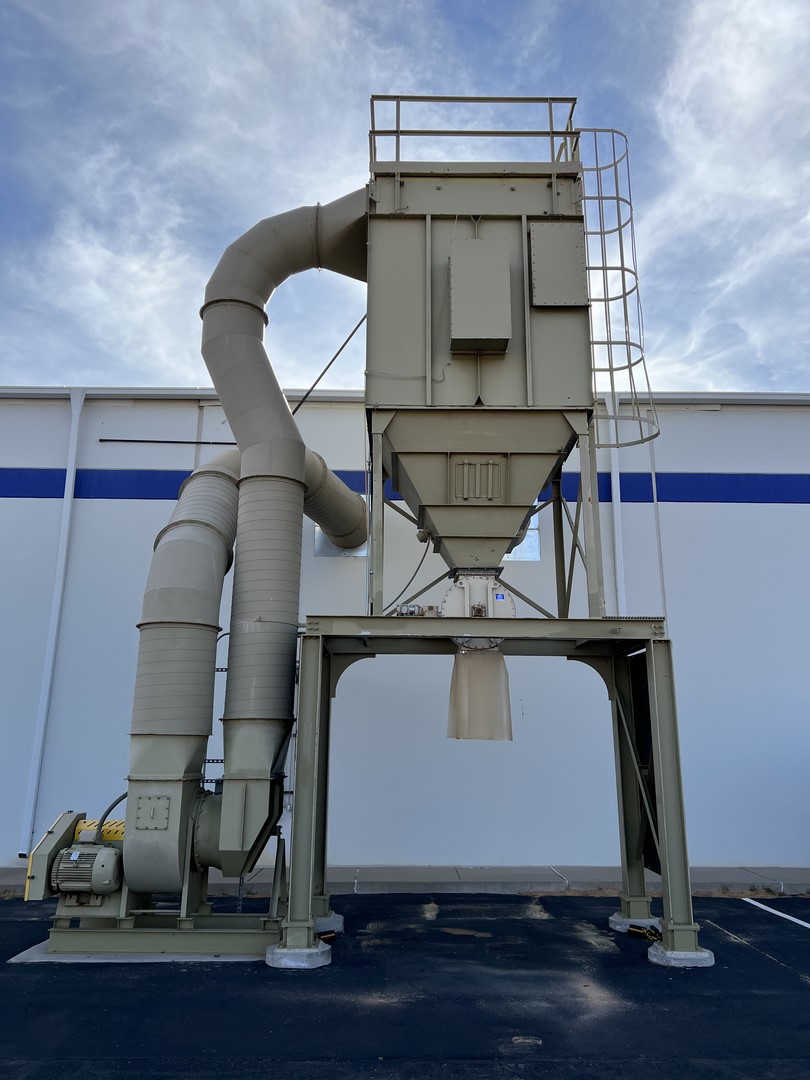

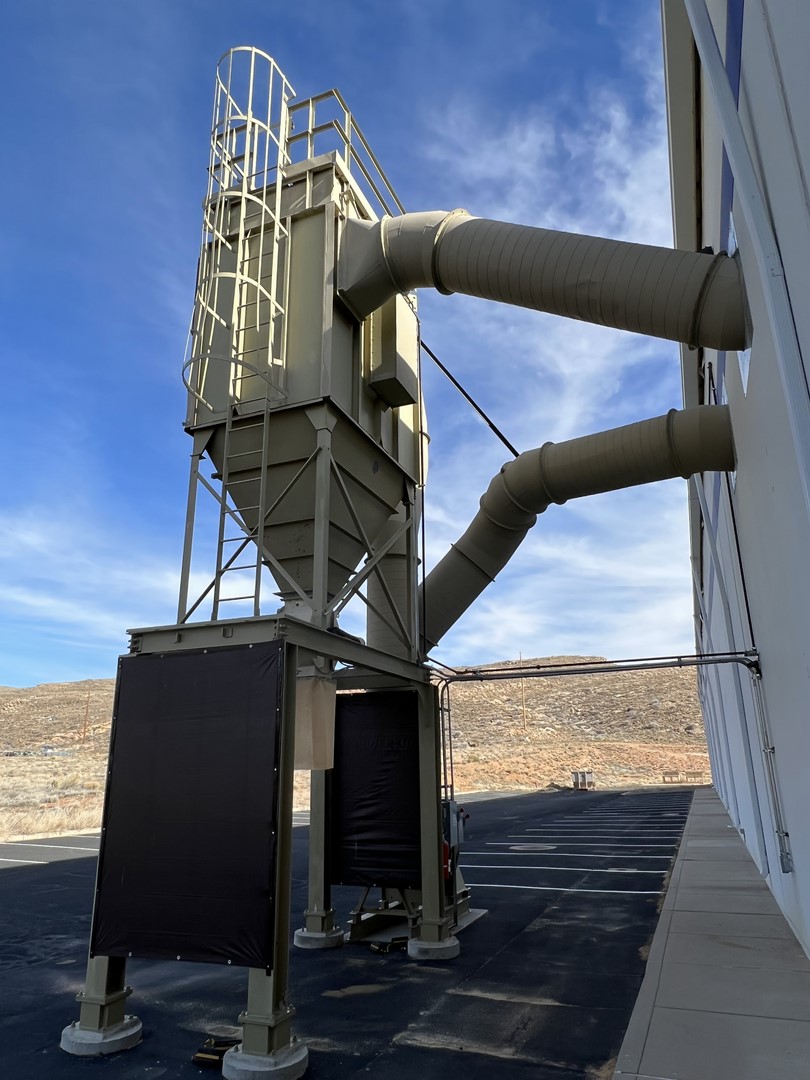

Donaldson Torit Used HPT96 Pulse Jet Baghouse Dust Collector
- 9,540 CFM @ 10:1 Air-To-Cloth Ratio
- Reverse Pulse Filter Cleaning from Shop Air Compressor
- (96) 8′ Long filter bags for a total of 954 Sq. Ft. Media. Bags replaced last in 2019

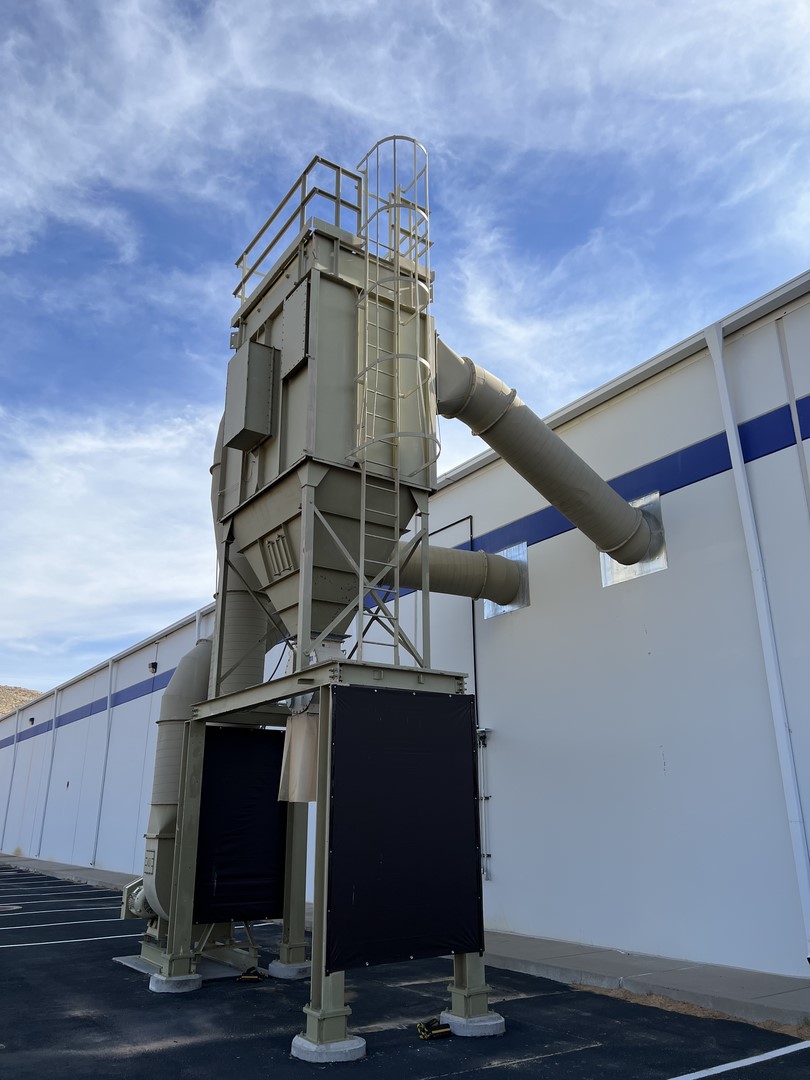

- Top access to bags with safety railing and caged safety ladder
- Hopper inspection door
- Bin Indicator (in case someone forgets to turn on the airlock)
- Rotary Airlock discharge
- Steel Support Structure
- Support Structure for trailer loading
- Explosion Vent
- High Side Inlet
- Custom Silencer/Diverter (not shown for return air to the building)

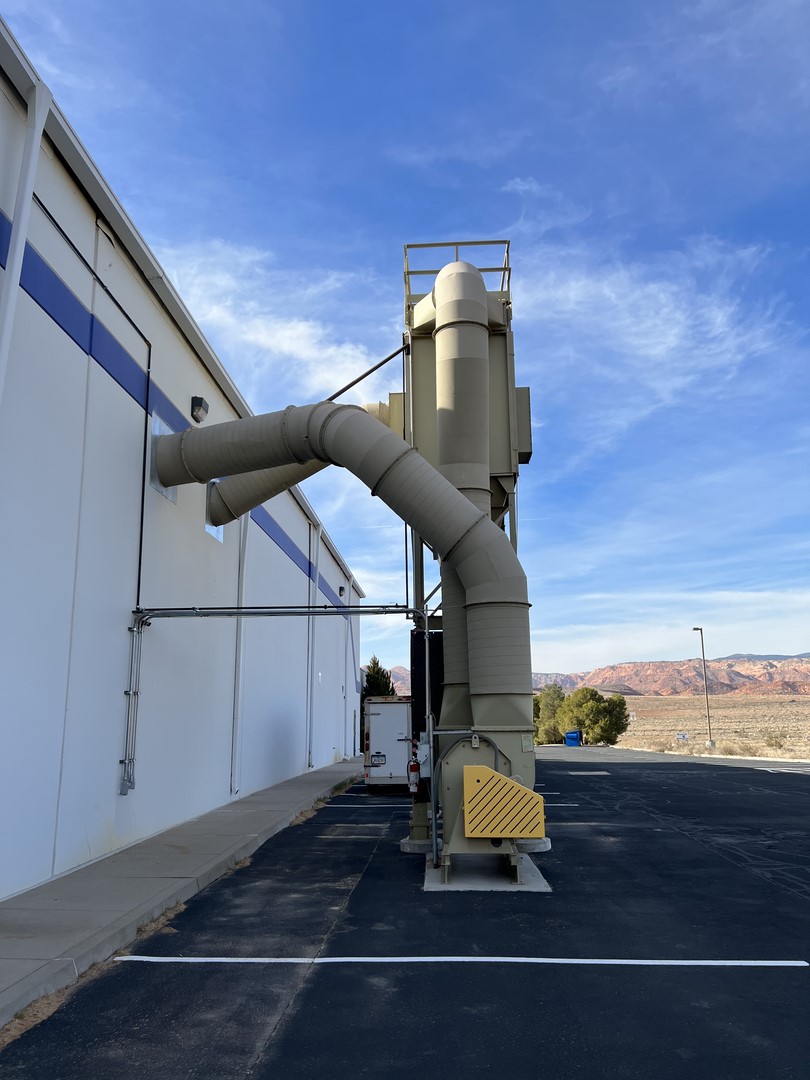

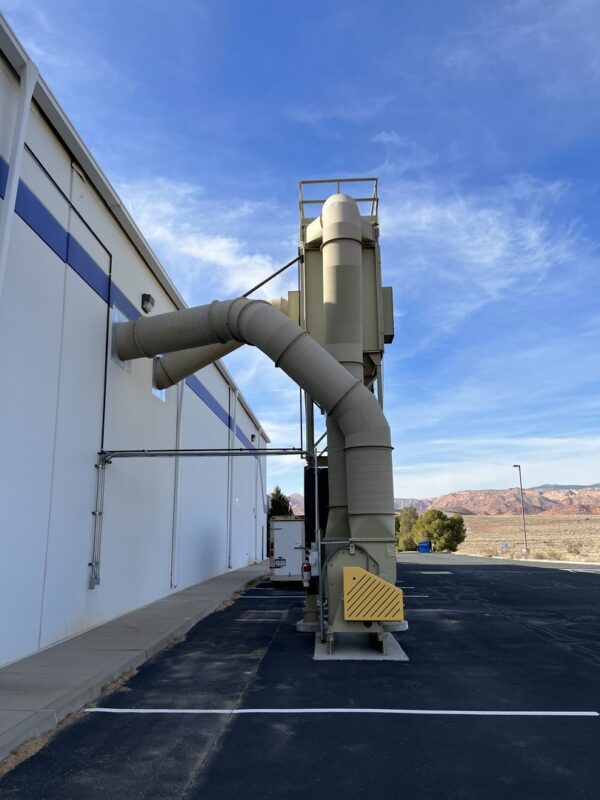

- Exterior Piping & Transitions

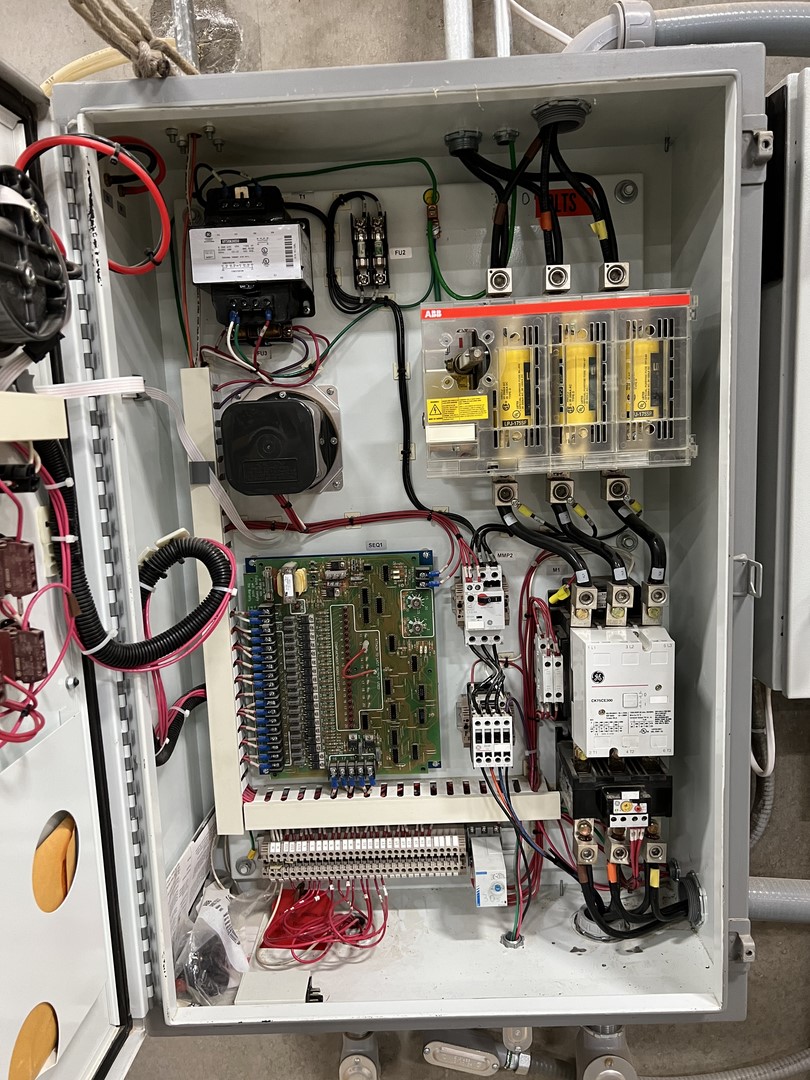

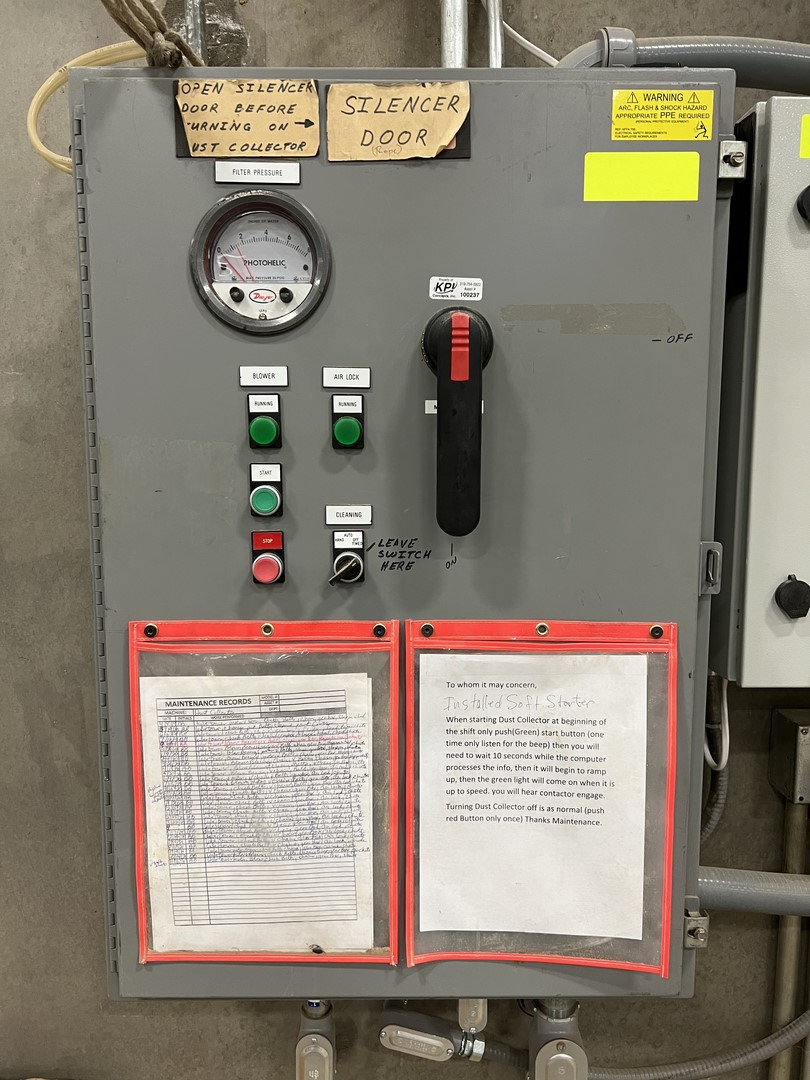

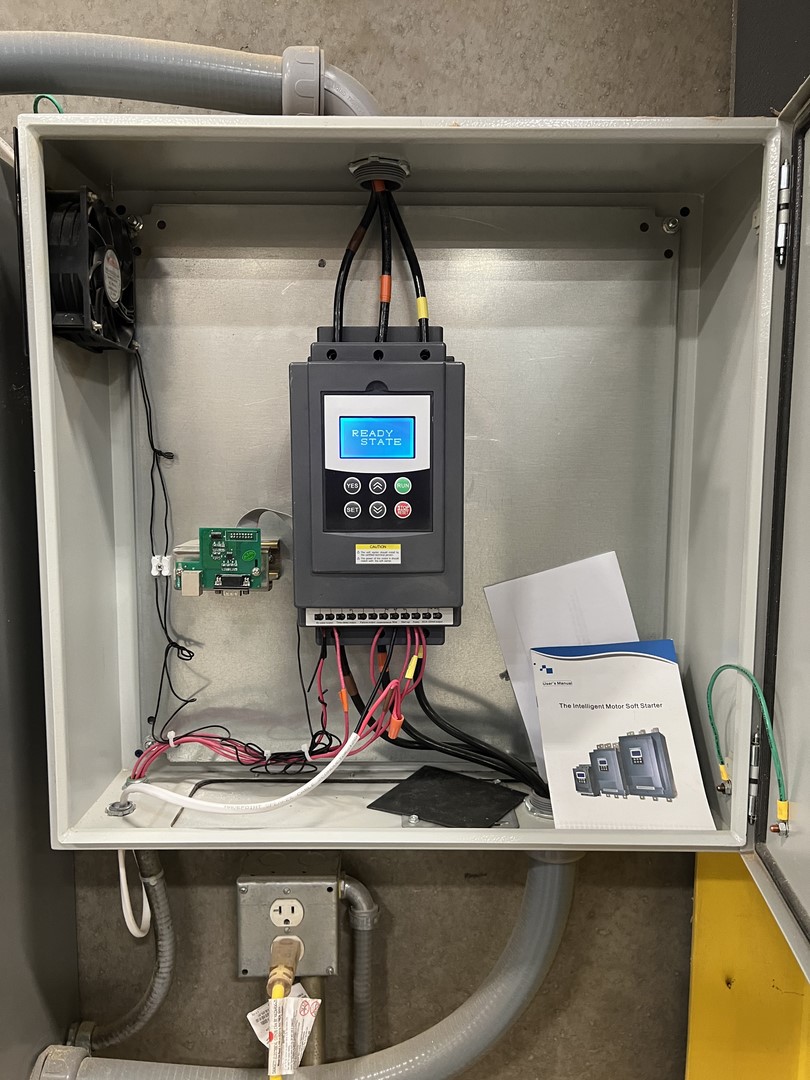

- Electrical Control Panel with Photohelic gauge, Pulse Timer, Soft Start

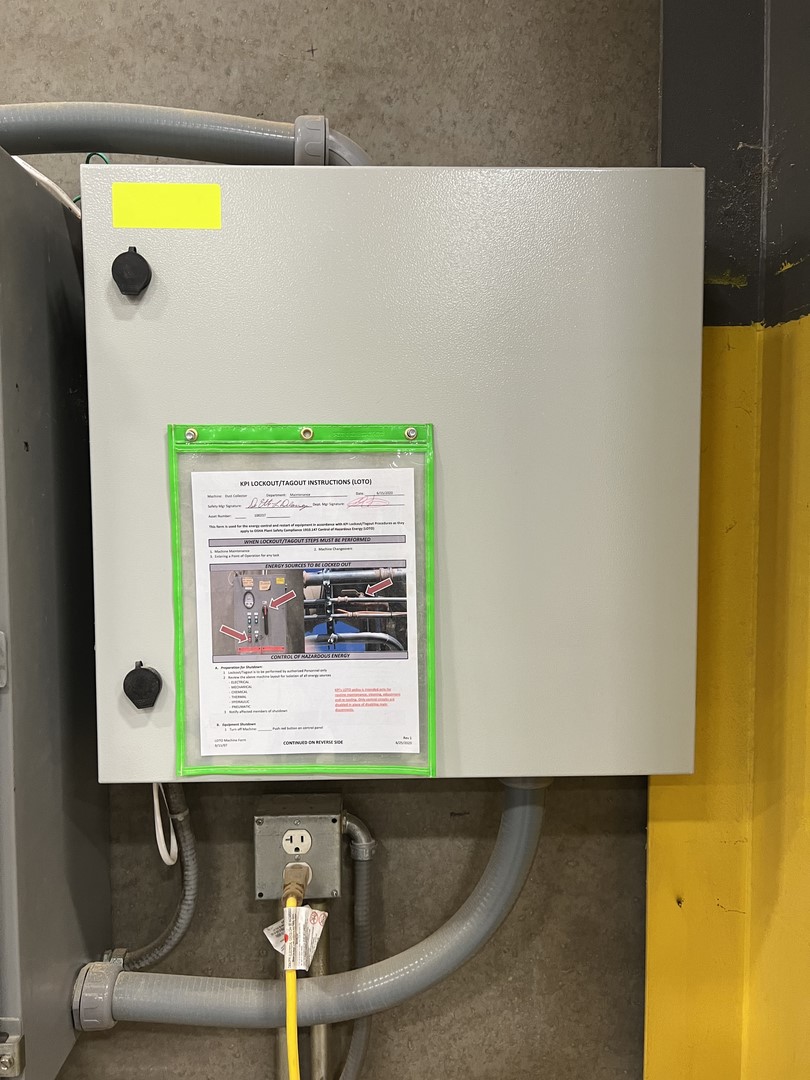

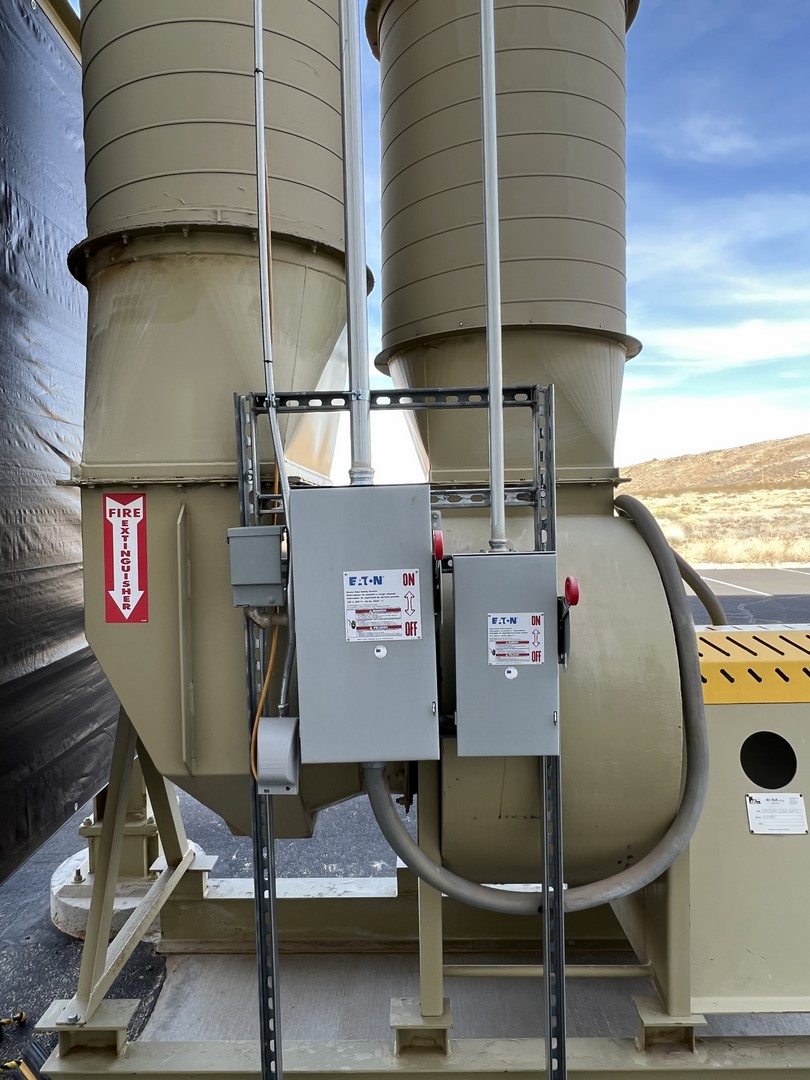

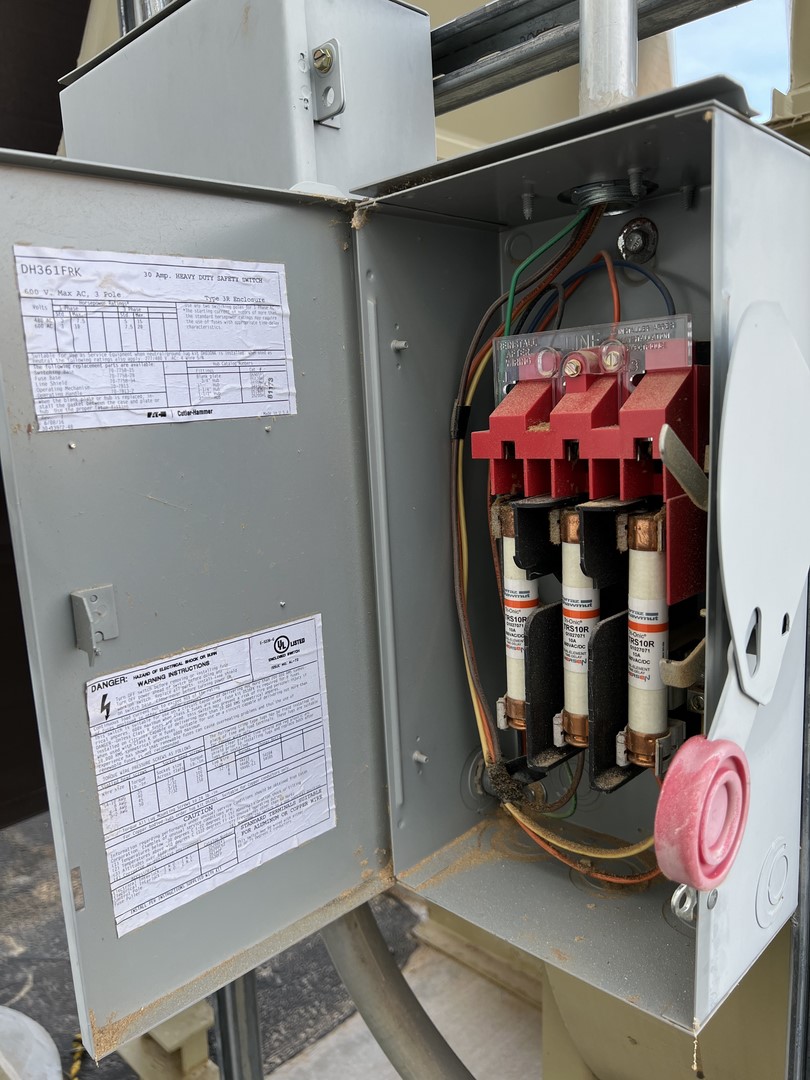

- Service Disconnect Panels

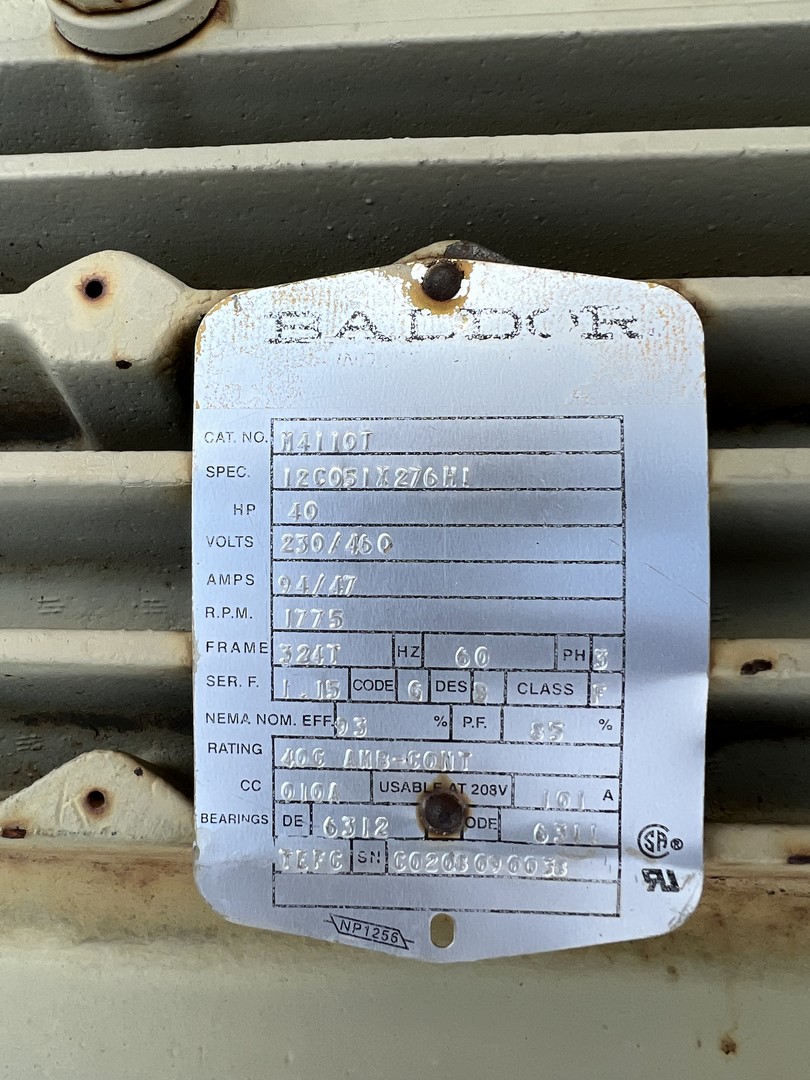

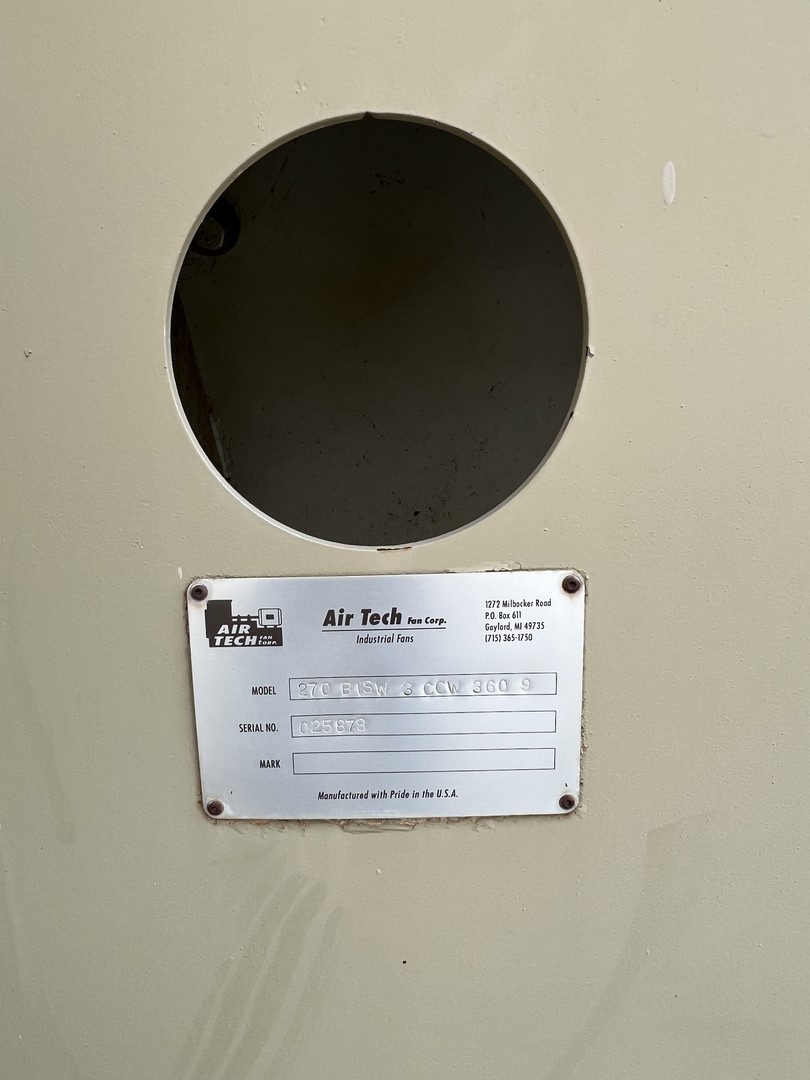

- 40 HP AirTech 270 BISW 3 CCW 9 Fan w/ Backdraft Damper (Clean Air Side)
- Professional Dismantling & Trucks Loading Available
- Used in Woodworking Application
